FRP REBAR TECHNOLOGY
Production technology for FRP REBAR, FRP mesh and bent fibreglass or basalt fibre frame elements (composite reinforcement, mesh and bent elements)
The fibreglass reinforcement (also known as glass-fibre reinforced plastic or composite rebar, mesh) is steadily replacing conventional steel rebar in construction across the world. GFRP rebar is made out of a mix of ultra-strong glass or basalt fibres and a connecting resin, resulting in a construction grade rebar with prevailing benefits over steel. Synthetic resins are used as a binding agent for fibres, protecting the fibres from mechanical effects and from the harmful affects of the environment during manufacturing of the product and its operation.
Fibreglass reinforcement manufacturing process consists of several main stages. First, fibreglass in the form of continuous strands is impregnated in a special container with a polymer resin, which contains a curing composition, as a result of which the so-called roving is obtained.
When the fibreglass is completely soaked, the roving is fed into the forming die to obtain a bar of a given diameter. Without waiting for the bar to harden, the source material is pulled through the polymerization chamber and heated to a certain temperature. Finally, the stock is wound and secured to create a ribbed surface. The bar with the rib woven onto it, enters the drying chamber, where the resin is polymerized. After polymerization, the finished reinforcement enters the cooling unit and then the rebar is cut into sections of a predetermined length or wound into coils.
There are 2 main components used in the production: the armoring material (roving) and binding mixture (epoxy or polyester resin). The ratio of these components is about 80/20. In the finished reinforcement, the roving perceives mechanical loads, and the resin acts as a matrix, evenly distributing the load along the entire length of the bar and protecting the reinforcement from the external factors.
The production line must be set up in a warehouse with specific characteristics. Its length shall be at least 50 meters (recommended length is 70 meters), ceiling height shall be at least 2.5 meters (recommended height is at least 3 meters), the height difference in the equipment location area shall be not more than 4-5 cm. Ventilation with air outflow must be of at least 200-250 litres per minute. Indoor air temperature shall be at least 16-18 °С.
Depending on the configuration our production lines can be used to simultaneously produce either 4 (CT4) or 2 bars (CT2), significantly increasing productivity.
GFRP rebar wytworzone przez nasz sprzęt charakteryzują się podwyższonymi parametrami wytrzymałościowymi (wytrzymałością na zerwanie, wytrzymałością na rozerwanie i wytrzymałością na rozciąganie), co jest doceniane przez profesjonalne firmy budowlane na całym świecie.
Osiągnęliśmy takie wyniki dzięki ogromnej ilości pracy wykonanej we współpracy z różnymi uniwersytetami i ośrodkami badawczymi, które specjalizują się w materiałach kompozytowych i zaawansowanych technologiach budowlanych.
FRP/BASALT REBAR VS STEEL REBAR COMPARISON
| SPECIFICATIONS | METAL CLASS A-III | FIBERGLASS |
|---|---|---|
| Tworzywo | Stal | Fiberglass bound by polymer based epoxy resin |
| Strength at stretching, MPa | 390 | 1300 |
| Relative extension, % | 25 | 2.2 |
| Coefficient thermal conductivity, W / (m0 С) | 46 | 0.35 |
| Moduł sprężystości | 200000 | 55000 |
| Linear coefficient extensions, ax 10-5 / 0С | 13-15 | 9-12 |
| Density, t / m | 7,8 | 1,9 |

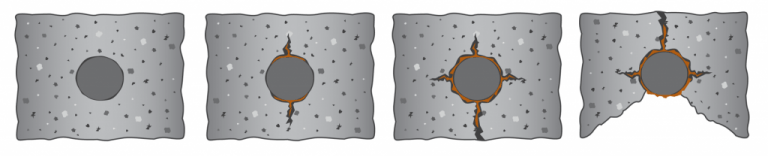

| Corrosion resistance to aggressive environments | Corrosive | Non-corrosive |
| Przewodność cieplna | Przewodzący ciepło | Nieprzewodzący |
| Przewodność elektryczna | Electrically conductive | Non-conductive – is a dielectric |
| Released profiles | 6-80 | 4-20 |
| Długość | Rods 6-12 m long | According to the buyer’s request |
| Trwałość | According to building codes | Predicted durability not less than 80 years |
Produkcja prętów zbrojeniowych GFRP pod klucz!
Dopasowując cenę sprzedaży prętów zbrojeniowych GFRP do ceny prętów stalowych, osiągasz marżę zysku przekraczającą 120%!
Zamów linię produkcyjną już w 2 miesiące od złożenia zamówienia, a inwestycja zwróci się już po 3 miesiącach od uruchomienia produkcji.
