CT2 FRP Rebar Production Line

ОБЛАСТИ НА ПРИЛОЖЕНИЕ

The CT2 FRP Rebar Production Line is a modern piece of equipment designed by Composite-Tech for producing fiberglass rebar. This machine is a highly efficient and reliable solution for those those looking to start or expand a profitable business in the constructi

Advantages of the CT2 FRP Rebar Production Line

  • High Productivity: The machine is equipped with all necessary modules for a complete rebar production cycle, including winding, impregnation, curing, and cutting.
  • Quality and Reliability: All components are made from high-quality materials and have undergone rigorous quality control, ensuring the equipment’s long service life.
  • Energy Efficiency: Optimized processes consume minimal energy, reducing operational costs.
  • Ease of Installation and Operation: Detailed instructions and a simple design allow for quick installation and startup.
  • Support and Maintenance: Composite Tech provides full technical support and training for your staff.

 1. Creel

    • Function:  Fiber feeding module. (2pcs)

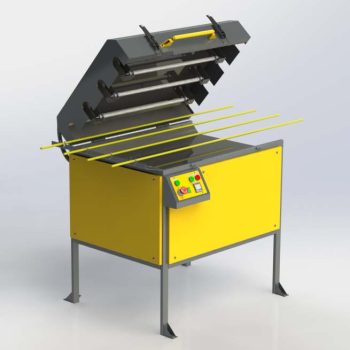

2. Impregnation Module

    • Function: Impregnation and winding module
Impregnation and rib winder module

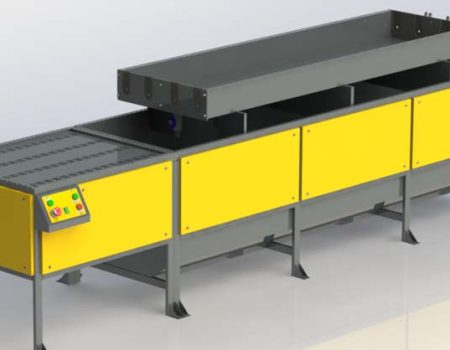

3. Curing oven

  • Function: Curing oven (4 pcs.).
Curing oven with fan

4. Cooling Module

    • Function: Cools the GFRP rebar.
Охлаждение

5. Pulling Device

    • Function: Pulls the GFRP rebar and determines the pulling speed.
Тянущее

9. Cutting Device

    • Function: Cuts the GFRP rebar to the desired length.
Отрезной

Technical Specifications of CT2

Parameter Value
Voltage 380V, 50Hz
Power Consumption 15 kW
Compressed Air Pressure 0.6 - 0.8 MPa
Equipment Dimensions (LxWxH) 20300 mm x 1850 mm x 1700 mm
Ambient Temperature 10°C - 35°C
Number of Modules 6

Recommended rebar production speeds

Nominal diameter, mm Number of bars Broaching speed, up to (m/min) Productivity, up to (m/min)
4 2 5 10
6 2 4,5 9
8 2 4 8
10 2 3,5 7
12 2 3 6
14 2 2,5 5
16 1 2 2
18 1 1,5 1,5
20 1 1 1

The given production speeds are indicative and depend on the polymerization characteristics of the resins used and the environmental parameters.

Why Choose the CT2 FRP Rebar Production Line?

Composite-Tech prides itself on its advanced technologies and product quality. Our machines are the best in their class, thanks to innovative solutions and strict quality standards. By purchasing the CT2 FRP Rebar Production Line, you are investing in reliable equipment that will help your business reach new heights.

Don’t miss the chance to make your business more profitable with advanced technologies from Composite-Tech! Contact us to learn more and place an order.
